Backyard Home Gym Buildings, Built to Take a Beating
Garage gyms have a way of losing to the cars, the bikes and the Christmas boxes. A dedicated building solves that permanently: your equipment stays set up, the noise stays outside the house, and nobody has to move a squat rack to get the lawnmower out. We build them by hand in Lynnwood and install across Snohomish and King County.
Built for Load, Not Just Storage
A home gym asks more of a building than almost any other use. Dropped weights are an impact load, a rack full of plates is a concentrated dead load, and rowing or skipping puts everything into motion at once. Our floors are 3/4 inch CDX plywood over 2×4 Douglas fir joists at 16 inches on centre, sitting on pressure-treated skids. There is no OSB anywhere in the structure, which matters when a bumper plate lands on it.

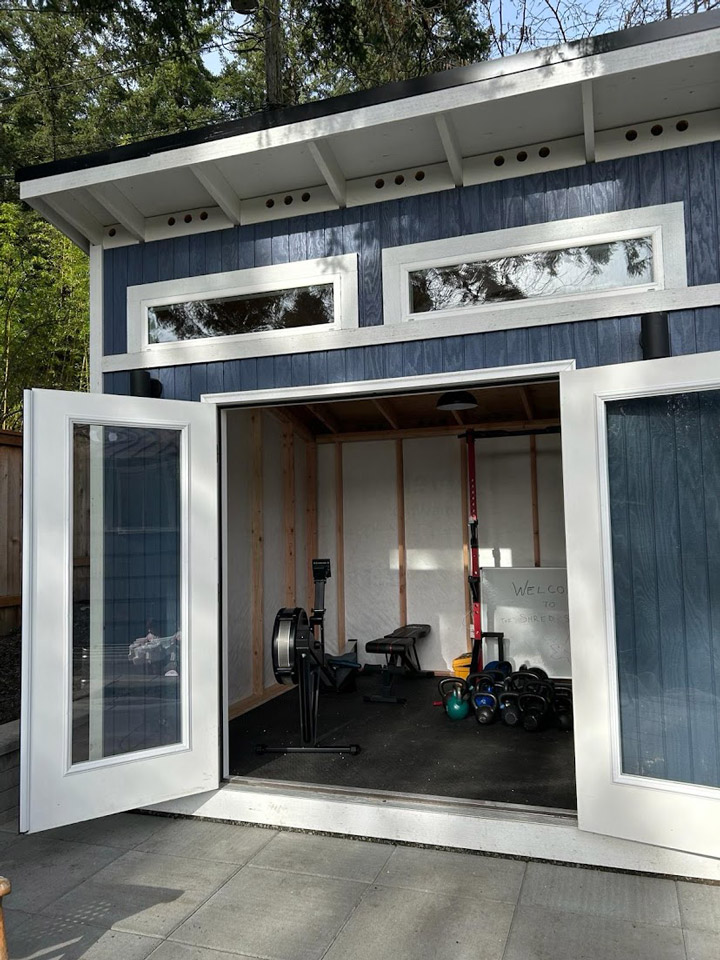

On top of that structure you are free to build the floor you want. Most clients lay 3/4 inch rubber matting over the plywood, and people doing serious Olympic lifting often add a plywood-and-rubber platform in one zone rather than covering the whole floor. Tell us where the rack is going and we can add blocking in the wall framing so it can be bolted properly.
Ceiling Height Is the Constraint That Bites
This is the single most common mistake we see. Standard wall height is 7 feet 4 1/2 inches, which is fine for a bike, a bench and dumbbells, but it is not enough for overhead pressing, jumping rope or a pull-up bar mounted to a rack. If any of those are on your list, upgrade the wall height at the design stage. It costs far less than discovering the problem after installation.

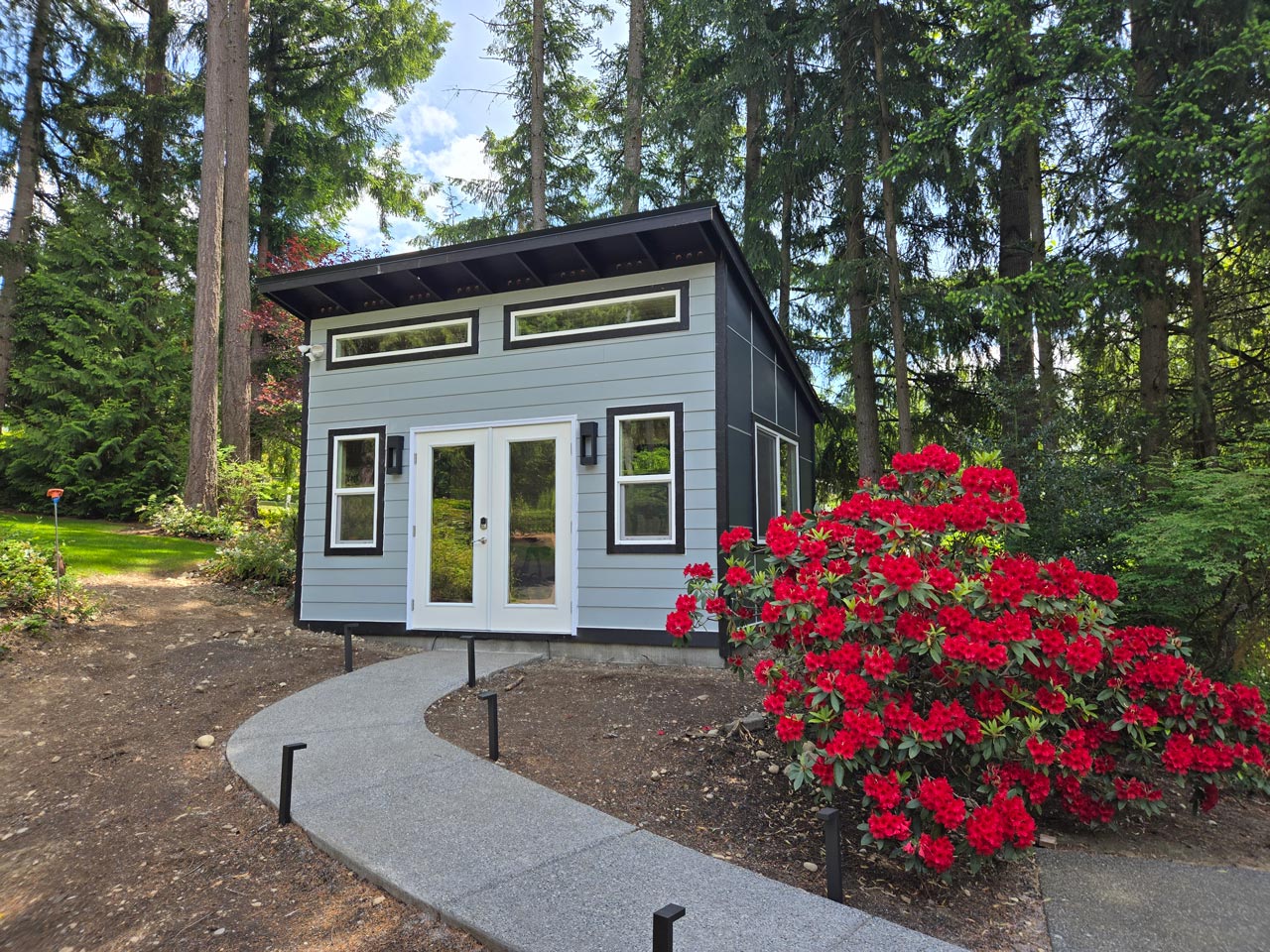

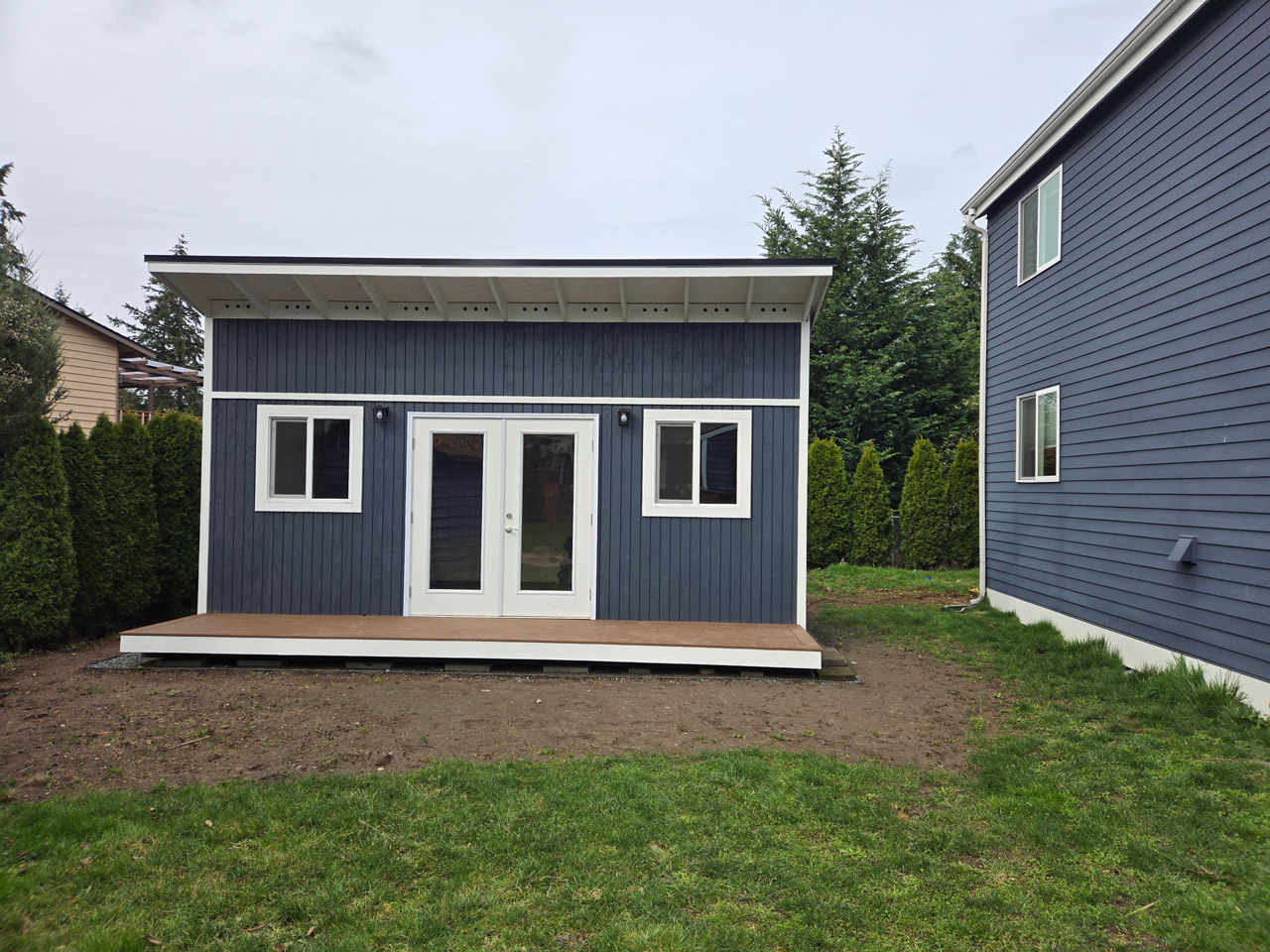

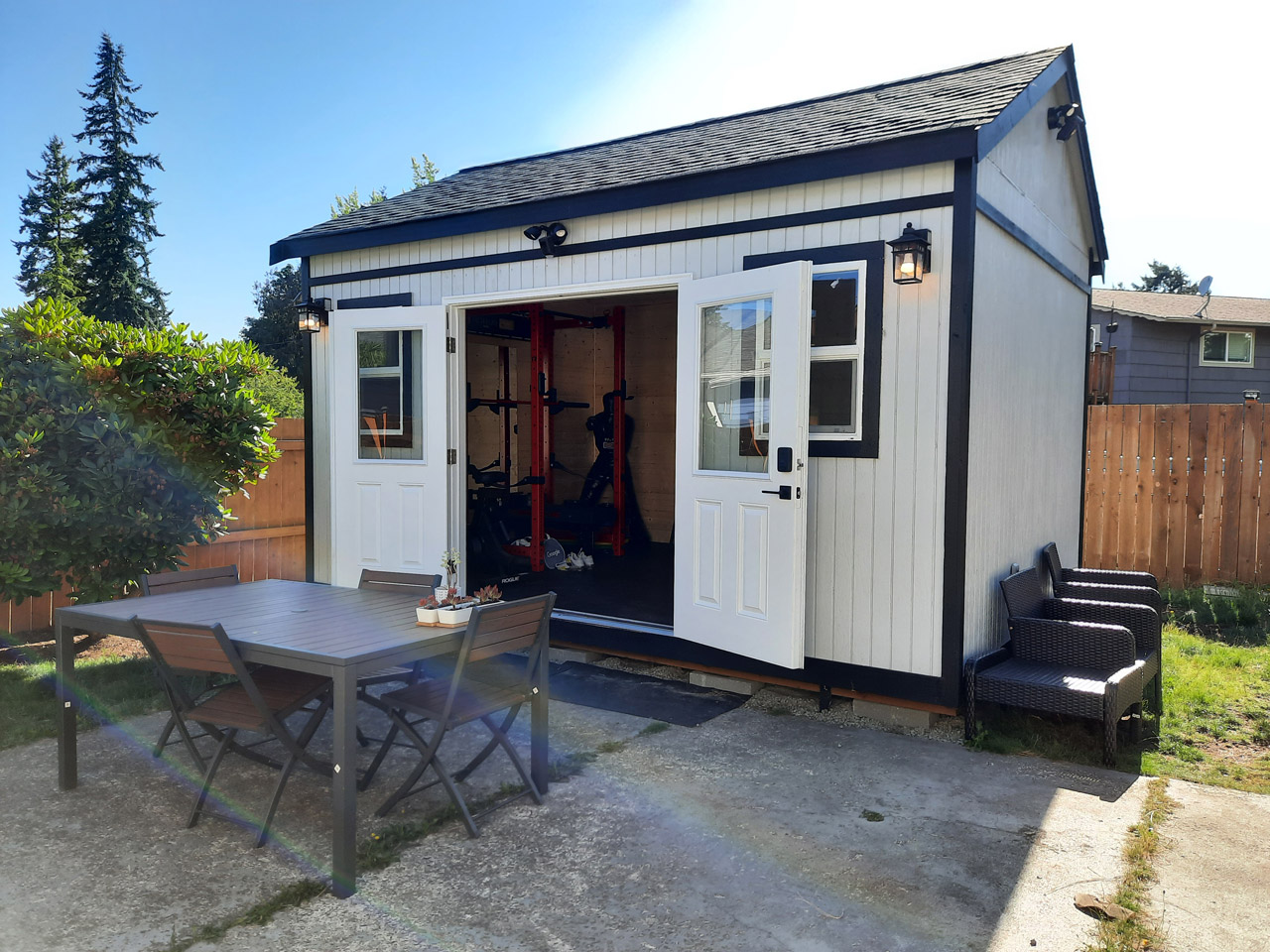

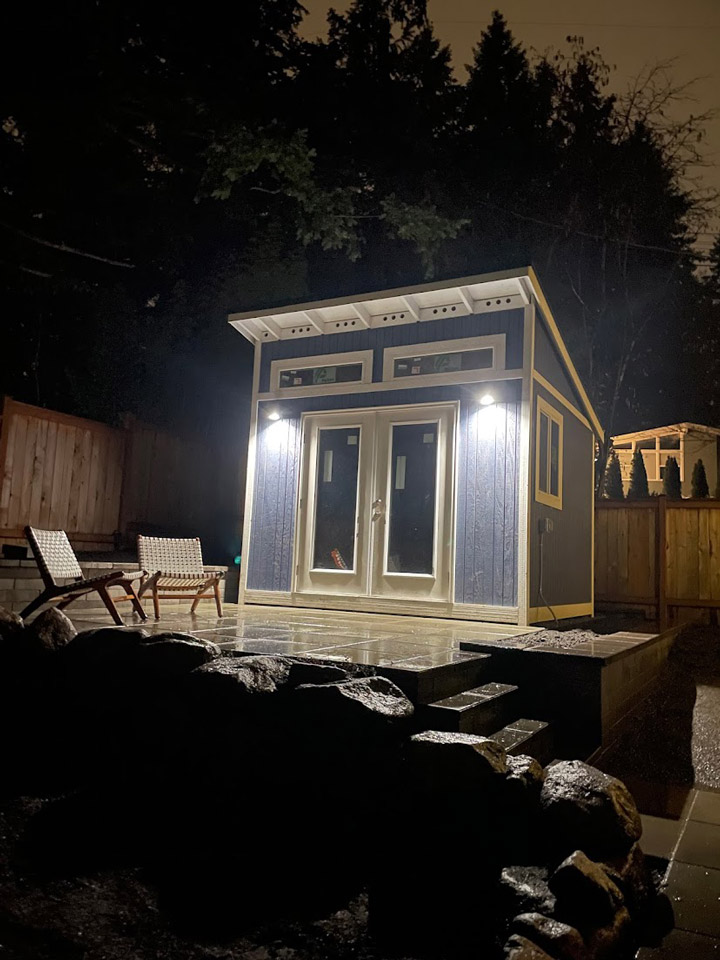

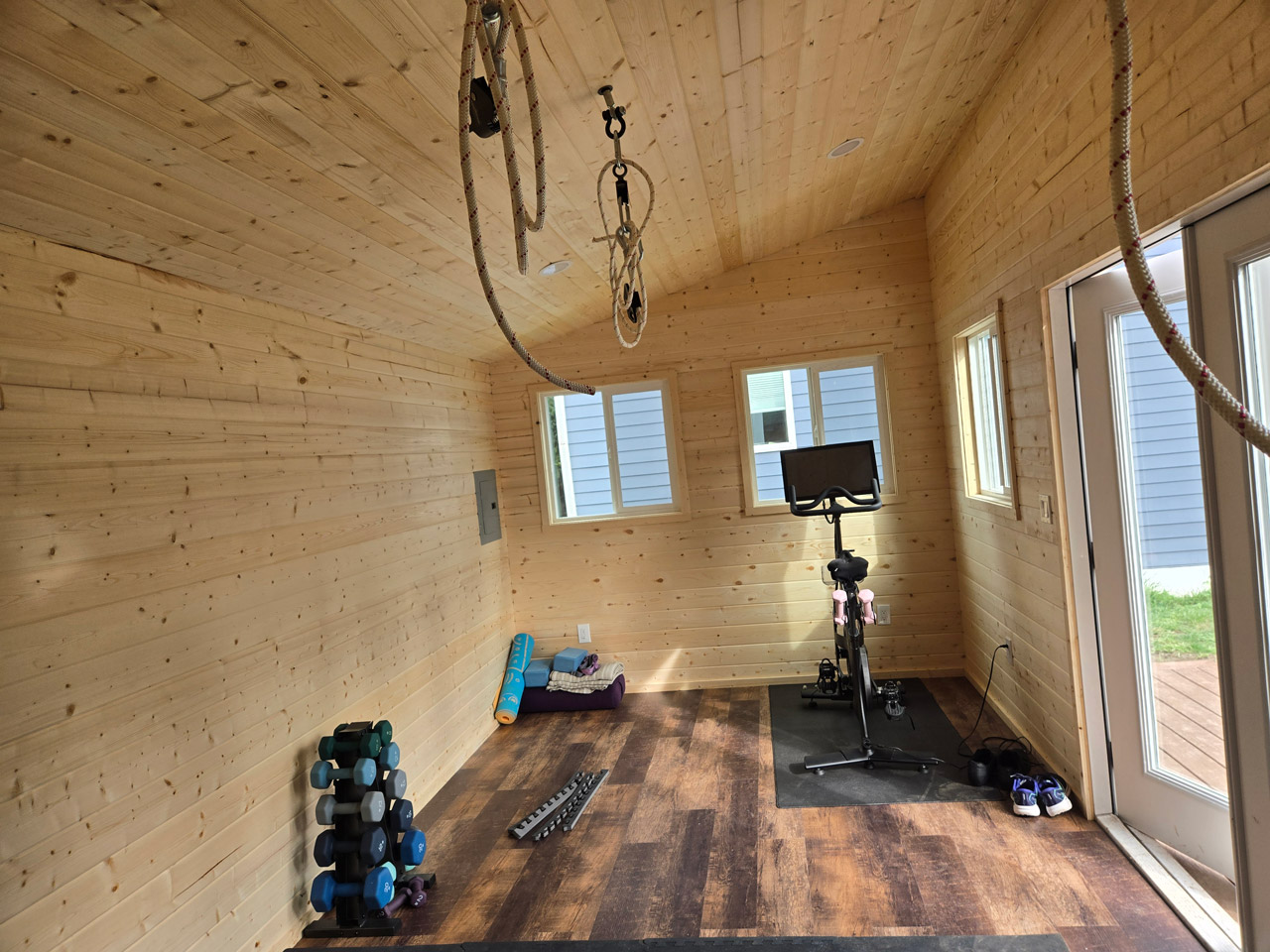

Roof style helps here too. The Rancher’s 6:12 gable and the Craftsman’s steeper 12:12 both give you a peak in the middle of the room, which is exactly where you want the extra clearance if the rack sits against a wall. The Forester’s single slope gives you one tall wall, which suits a rack line along that side. It is worth thinking about before you pick a style on looks alone.
Popular home gym specifications
- Upgraded wall height for overhead work
- Insulation package to hold temperature

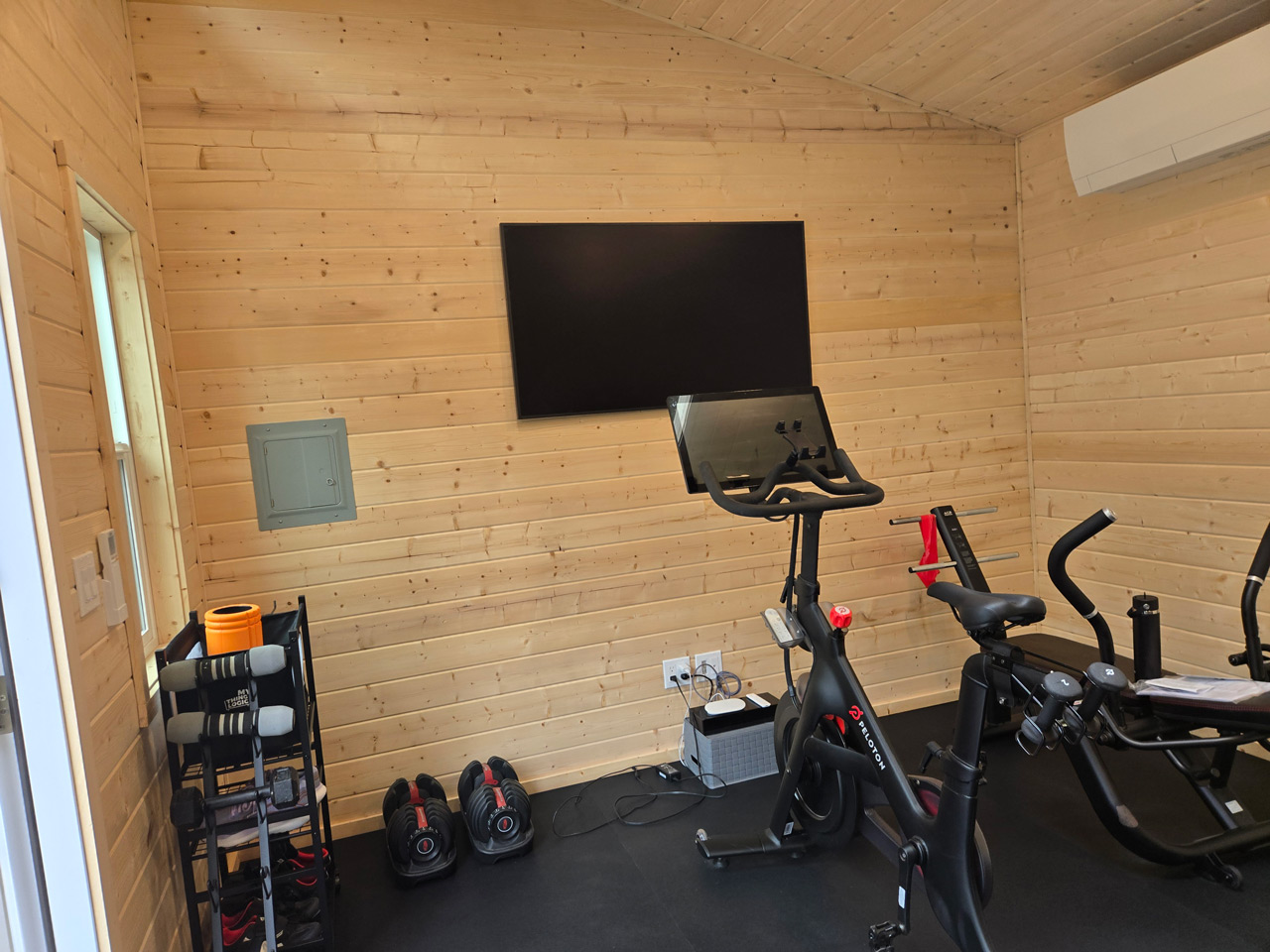

- Electrical package for fans, lighting and a screen
- Interior heating package
- Double shed doors for moving equipment in
- Roof and wall vents for airflow
- Slider or picture windows for daylight
- CDX or cabinet grade interior walls for mounting
- Blocking in the framing at rack locations
Sizing a Home Gym
Base prices below include delivery, installation on a prepped level lot, a single shed door, 30-year architectural shingles and Douglas fir T1-11 siding. Insulation, electrical, heating, upgraded wall height and additional doors are quoted on top.
10×12 Rancher
$6,840
120 sq ft. Cardio plus dumbbells and a bench, or a yoga and mobility space with room to roll out a mat in any direction.
12×16 Rancher
$10,560
192 sq ft. A rack, a bench, a bar and space to actually walk around them. The most common serious home gym footprint.
12×20 Rancher
$13,680
240 sq ft. Rack plus cardio plus a turf lane for sled work, or room for two people to train at the same time.
A useful rule: measure your equipment footprint, then double it. The space around the bar is what makes a gym usable.
Financing is available through Enhancify. See financing options.
What Gym Clients Say
Hands down this is the company to choose if you’re thinking of building an outdoor space like an office — or in my case — a gym shed. The quality of the materials used for the shed are top notch, and they can accommodate seemingly endless designs to make you happy. They helped me navigate scenarios like permitting, electricity, and preparing the space for the shed.
Michelle F.
We now have a solid 140 square feet of useable space on our property to be used as anything from storage to a she shed or even a private work from home office. The shed was built to plans approved by the local city building inspectors and all materials are wood and no cheap pressboard products.
Mark M.
Home Gym Questions
Can the floor handle dropped weights?
The structure is built for it: 3/4 inch CDX plywood over 2×4 Douglas fir joists at 16 inches on centre, with no OSB anywhere. For repeated heavy drops we still recommend adding your own rubber matting, and a dedicated lifting platform if you are dropping loaded bars regularly. Tell us at the design stage where the platform will sit and we can plan the framing around it.
How much ceiling height do I need for overhead lifts?
Standard wall height is 7 feet 4 1/2 inches. For overhead pressing, jumping rope or a pull-up bar, most people want more, and wall height can be upgraded at the design stage. A gabled Rancher or Craftsman roof also gives you extra clearance at the peak. This is much cheaper to solve before the building is made than after.
Will my neighbours hear it?
A detached building is already a significant improvement over a garage attached to the house, because there is no shared wall carrying impact into living space. An insulation package adds further deadening. If noise is a real concern, siting the building away from the shared boundary and putting rubber matting under the drop zone does more than anything else.
Do I need a permit for a home gym building?
Often yes. The exemptions most people have read about cover unconditioned structures not used for human habitation, which is a storage shed rather than a gym you heat and spend an hour in each morning. Unincorporated Snohomish County exempts up to 200 square feet inside an urban growth area but does not allow heating systems in exempt structures; unincorporated King County exempts 200 square feet of unconditioned storage with no electrical; Seattle exempts only 120 square feet for unoccupied uses. Electrical work needs its own permit everywhere. One of our clients decided against permitting and scaled her gym down instead, which was the right call for her budget. See our permit guide for the full picture.
Can it be heated for winter training?
Yes. An insulation package plus an interior heating package will keep the building comfortable through a Washington winter, and vents help on the other side of the year when a gym warms up fast. Every building already includes a moisture barrier in the roof, floor and walls.
How do I get large equipment inside?
Specify double shed doors. Standard is a single out-swing door of 36, 42 or 48 inches, which is fine for plates and dumbbells but awkward for a fully assembled rack or a treadmill. Double doors at 36 or 42 inches each are a common gym upgrade and cost very little compared with the frustration they save.
Design Your Gym
Lay it out in 3D, or send us your equipment list and we will size it with you.
